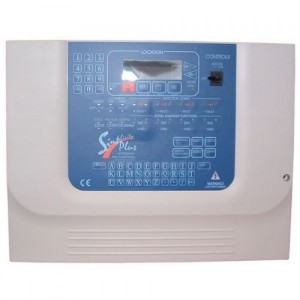

Simplicity Micro Addressable Fire Alarm Panel
|
The Simplicity Micro is a unique concept that provides the best possible entry level solution for addressable fire alarm systems. It is directed primarily towards small installations, where traditionally the use of addressable systems would have been considered cost prohibitive. The Micro is based upon the successful Simplicity 64 & 126 fire alarm panels and incorporates many of the larger systems features. These include single loop connection, minimal commissioning & configuration, 20 character label for each connected device and a 2,048 history event log |
|
The Simplicity Micro is a unique concept that provides the best possible entry level solution for addressable
fire alarm systems. It is directed primarily towards small installations, where traditionally the use of addressable systems would have been considered cost prohibitive. The Micro is based upon the successful Simplicity 64 & 126 fire alarm panels and incorporates many of the larger systems features. These include single loop connection, minimal commissioning & configuration, 20 character label for each connected device and a 2,048 history event log.
Alarm Verification
To help prevent false alarms causing a full evacuation, any smoke detector can be set to alarm verification mode with a time delay of between 30 seconds and 4 minutes. Should any of these detectors go into alarm then only the detector’s LEDs and sounder/flasher base (if connected) will activate. Should the alarm not be cleared with this time delay then a common alarm will occur.
Specification:
- Supply Voltage: 230V AC +/- 10%
- System Voltage: 24V DC (nominal)
- Number of Loops: 1
- Loop Capacity: 32 devices
- Number of Zones 4
- Sounder Output: Addressable sounder only
- Fault Output: 28 V repeat output to drive relay (normally energised)
- Fire Output: 28 V repeat output to drive relay
- Operating Temperature: -0°C to 50°C
- Enclosure Size: (mm) 355 x 275
Features:
- Complies fully to EN54 parts 2 & 4.
- CE marked.
- Slimline enclosure.
- Flame retardant ABS plastic.
- Set of changeover relay output in fault condition.
- Set of changeover relay output in relay condition.
- Each detector can have a sounder or combined sounder & flasher base.
- 2,046 event log (fire & fault).
- Zone or device disablement.
- One man test mode.
- Plug & play, no need for any special tools or laptop for commissioning.
- Fully integrated keypad.
- All associated devices are loop powered.
