702rEUR-00 – Watch/pendent transmitter
Description

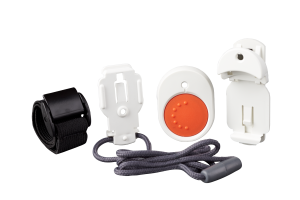

The 702r Watch/Pendant transmitter is designed for use with the 762r, 768r/769r and 7510r 868MHz radio receivers. It can be used to trigger outputs on any of these receivers, or start social care alarms on the 7510r. The transmitter comprises a plastic waterproof case that can either be worn on a strap round the wrist, round the neck on a pendant, or clipped to a pocket. The aerial is inside the case. The unit is powered by a long life lithium battery.
Please Note: This product is not approved for generating a police response under BS8243:2010.
Specifications
| Part Number | 702rEUR-00 |
| Description | Wristwatch Transmitter |
| Transmit Power | 1mW |
| Free Space Range | >175m |
| Power Supply (battery) | 3v Li non-user replaceable |
| Battery Life | 5 Years |
| Temperature Range | -10 to +55°C |
| Water Resistance | Shower proof |
| Dimensions | 44 x 32 x 13mm |
| Weight | 14gm |
| Colour | White |
| Compliance | EN 50130-4 :1995 +A1:1998 +A2:2003 EN 61000 – 6-3 :2007(CISPR 22 Limit B) EN 60950-1 :2006 +A12 :2011 EN 300 220-2 V2.1.2 EN 301 489-1 V1.8.1 |
