CS-430 PET PIR Detector


CS-430 PIR Detector :

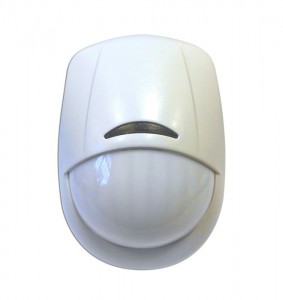

The Scantronic 430 Pet Tolerant Digital indoor motion detector uses Passive Infra Red (PIR) technology to detect movement of body heat to activate the alarm in the event of an intrusion.









The Scantronic 430 Pet Tolerant Digital indoor motion detector uses Passive Infra Red (PIR) technology to detect movement of body heat to activate the alarm in the event of an intrusion.



  • Tolerant to animals up to 38kg (85lbs)
  • Stylish and compact
  • Digital processing technology for better detection accuracy
  • 3D cylindrical optics with Target Specific Imaging provides up to 12m 90° multiple curtain coverage with creep zone.
  • Fully sealed optics provide protection against draught, dust and insect ingress, offering a high level of environmental immunity and reducing the burden from repeated false alarms.
  • Adjustment free fast installation
  • Remote test with alarm event verification software assures highest reliability and false alarm protection
  • Solid state relay for silent operation

Scantronic CS-430


Brand Scantronic
Model Code CS-430
Series 400 Series
PIR Detectors Yes
Coverage/ Range m 12
Angle of Detection o 90
Pet Tolerance Yes
Sealed Optics Yes
Creep Zone Creep Zone
Power Consumption 8 mA
Electrical Specifications Power Supply: 9 ~ 16 V DC
Model Info Selectable event counter.  Temperature compensation.

Coming soon!

Downloads

430 Brochure.pdf
