DS-2CE16D1T-IT1/IT3/IT5
|

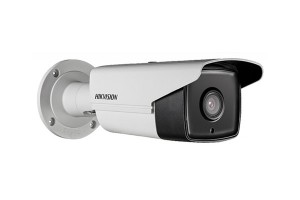

Hikvision DS-2CE16D1T-IT5 camera is a HD Analogue (TVI) camera offering realtime HD resolution of 1080P in a smart new Bulet Camera design with smart EXIR. |
|
| Camera | ||
|---|---|---|
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1930(H) × 1088(V) | |
| Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 3.6mm, 6mm optional, Angle of View: 91.3°(3.6mm), 59.9°(6mm) | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| Up the Coax: | Support | |
| Menu | ||
| Camera ID: | On/Off (0-255) | |
| D/N Mode: | Color/ BW/ Auto/ EXT | |
| Auto White Balance: | Auto/User/Push/8000K/6000K/4200K/3000K | |
| Private Mask: | On/Off, maximum 8 zones | |
| Motion Detection: | On/Off, maximum 4 zones | |
| BLC: | On/Off | |
| AGC: | Support | |
| Anti-flicker: | On/ Off | |
| Language: | English/Chinese | |
| Function: | Digital noise reduction, Mirror | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | Max. 4W | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 20m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | 86.22×82.05×220.13mm(3.39”×3.23”×8.67”) | |
| Weight: | 430 g (0.95 lb) | |
| SKU | DS-2CE16D1T-IT5-3.6mm |
|---|---|
| BRAND | Hikvision |
| CAMERA STYLE | Bullet Cameras |
| RESOLUTION | 2MP (1080P) |
| Lens (mm) | 3.6mm lens |
| IR RANGE (m) | 50-100m |
| FEATURES | Turbo HD, Outdoor Use, EXIR |
