DS-2CE56D1T-VPIR
|

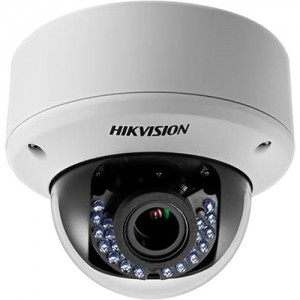

HD-TVI TURBO HD Camera Hikvision DS-2CE56D1T-VPIR M7528 has been designed for use in CCTV systems based on HD-TVI DVRs. The camera provides 1080p video. With high sensitivity (0.01 lx) and built-in IR illuminator with range up to 20 m, the camera ensures high quality image in low light or even no-light conditions. High Definition Transport Video Interface (HD-TVI) is a revolutionary technology that allows users to send uncompressed, high-resolution video (up to 1080p) over coaxial or twisted-pair cables (using dedicated baluns). The transmitted video signal is in analog form, with bandwidth much greater than in the case of CVBS (SD). As the signal is not compressed, the picture is more natural during live viewing. There is no delay and the configuration of such a system is easier compared to IP CCTV solutions. The camera has the ability to control the OSD menu using the video signal cable. The control is possible via a compatible DVR, after selecting PTZ control in its menu and switching on the menu of the camera, with access to all configuration options. |
|
| Camera | ||
|---|---|---|
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1930(H) × 1088(V) | |
| Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 3.6mm (6mm optional), Angle of View: 91.3°(3.6mm), 59.9°(6mm) | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| Menu | ||
| Camera ID: | On/Off (0-255) | |
| D/N Mode: | Color/ BW/ Auto/ EXT | |
| Auto White Balance: | Auto/User/Push/8000K/6000K/4200K/3000K | |
| Private Mask: | On/Off, maximum 8 zones | |
| Motion Detection: | On/Off, maximum 4 zones | |
| BLC: | On/Off | |
| AGC: | Support | |
| Anti-flicker: | On/ Off | |
| Language: | English/Chinese | |
| Function: | Digital noise reduction, Mirror | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | Max. 4W | |
| Impact Protection: | IK10. | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 20m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | Φ111 × 82.4(Φ4.37” × 3.24”) | |
| Weight: | 550 g | |
