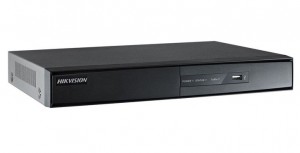

DS-7604/7608/7616HI-ST/A
Embedded Hybrid DVR
• H.264 video compression
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• 4/8/16-ch synchronous playback
• HDD quota and group management
Video/Audio Input | ||
---|---|---|
Video Compression: | H.264 | |
Analog Video Input: | 4-ch, BNC(1.0Vp-p, 75Ω), PAL/NTSC adaptive | |
IP Video Input: | Up to 8-ch | |
Composite Video Input: | up to 8-ch (Analog video + IP video) | |
Audio Compression: | OggVorbis | |
Audio Input: | 1-ch, RCA (2.0Vp-p, 1kΩ) | |
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (Using audio input) | |
Video/Audio Output | ||
HDMI / VGA output: | 1920 × 1080 / 60 Hz (1080P), 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
|
CVBS Output: | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
Recording Resolution: | Main stream: WD1 / 4CIF / 2CIF / CIF / QCIF Sub-stream: CIF / QCIF |
|
Frame Rate: | Main stream: 25 fps (P) / 30 fps (N) Sub-stream: 25 fps (P) / 30 fps (N) |
|
Video Bit Rate: | 32 Kbps ~ 3 Mbps | |
Audio Output: | 1-ch, RCA (Linear, 1 KΩ) | |
Audio Bit Rate: | 64 Kbps | |
Synchronous Playback: | 8-ch | |
Dual Stream: | Support | |
Hard Disk Driver | ||
Interface Type: | 1 SATA interface | |
Capacity: | Up to 4 TB capacity for each disk | |
External Interface | ||
Network Interface: | 1, 10M/100M self-adaptive Ethernet interface | |
Serial Interface: | 1 RS-485 interface, half-duplex | |
USB Interface: | 2, USB2.0 | |
Alarm Input: | 4-ch | |
Alarm Output: | 1-ch |
General | ||
---|---|---|
Power Supply: | 12V DC | |
Consumption: | Max. 10W | |
Working Temperature: | -10°C~+55°C(14°F~131°F) | |
Working Humidity: | 10%~90% | |
Chassis: | 19-inch rack-mounted 1U chassis | |
Dimensions: | 315 × 242 × 45 mm | |
Weight(Without HDD): | Approx. 2 kg / 4.4 lb (without hard disk) |
