DS-7604/7608/7616NI-SE/P
DS-7604/7608/7616NI-SE/P:
|

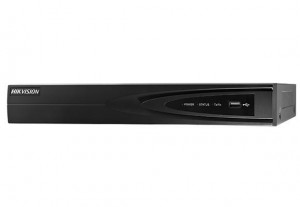

Hikvision DS-7608NI-E2 - This DVR is designed to provide small and medium-sized facilities with high-quality IP-Surveillance. Small shops, car, house or cottage just do not get along without this device, which can connect up to eight cameras. Cameras can be from different manufacturers and connect to DS-7608NI-E2 remotely or locally. The main thing - that they support ONVIF. With this DVR you have the ability to view even the videos that were shot a few days ago. In fact, besides the fact that you can monitor the situation in real time as the one so in sync with eight cameras, recorder and even provides a video archive. IP-recorder DS-7608NI-E2 enables remote connection to it through a web browser on any operating system and even a phone. |
|
| Video/Audio Input | ||
|---|---|---|
| IP video input: | 4-ch | |
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| Network | ||
| Incoming bandwidth: | 20Mbps | |
| Outgoing bandwidth: | 40Mbps | |
| Remote connection: | 128 | |
| Video/Audio Output | ||
| HDMI/VGA output: | 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
|
| Recording Resolution: | 5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) | |
| Synchronous Playback: | 4-ch | |
| Decoding | ||
| Live view / Playback: | 5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF | |
| Capability: | 4-ch@720P / 2-ch@1080P / 1-ch@5MP |
|
| Hard Disk | ||
| SATA: | 2 SATA interfaces for 2 HDDs | |
| Capacity: | Up to 4TB for each disk | |
| External Interface | ||
| Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface | |
| Serial Interface: | 1 RS-485 half-duplex interface | |
| USB Interface: | 2, USB2.0 | |
| POE | ||
| Interface: | 4 independent 10 /100 Mbps PoE Ethernet interfaces |
|
| Supported Standard: | AF | |
| General | ||
|---|---|---|
| Power Supply: | 100~240VAC, 47~63Hz, 3A | |
| Consumption(without hard disk and POE): | ≤ 15 W (without hard disk) | |
| Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Chassis: | 19-inch rack-mounted 1U chassis | |
| Dimensions: | 445 × 290 × 45mm | |
| Weight(without HDD): | ≤ 2 Kg | |
