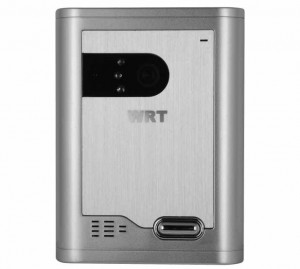

DZH-121C
|
This color vdeo door station use the normal CCD camera with infrared LED compensastion. It has also a Vandal-proof and weather-proof design with ABS plastic and metal case. This model use small and exquisite design with die-casting aluminium, to be wheatherproof and vandalproof. Perfectly used for villa and small apartment. Max. Capacity: 2 outdoor stations can link with 8 indoor monitors. Video and audio door phones can be connected together. Different design indoor model can be easily compatible. |
|
Dimension: 101x135x 40mm
95 x128x50mm (Embedded part)
Power input: +12VDC (supplied by Door Phone)
Standby current: ≤25mA
Working current: ≤150mA
Working temperature: -30℃~ +55℃
Humidity: 45%~85%
Image device: 1/3" SONY SHAD CCD
Video system: PAL /NTSC
H. resolution: 420TV Lines
S/N rate: >48dB
Unlock delay time: 8 Seconds
Min illumination: 0.8 LUX at F1.2
95 x128x50mm (Embedded part)
Power input: +12VDC (supplied by Door Phone)
Standby current: ≤25mA
Working current: ≤150mA
Working temperature: -30℃~ +55℃
Humidity: 45%~85%
Image device: 1/3" SONY SHAD CCD
Video system: PAL /NTSC
H. resolution: 420TV Lines
S/N rate: >48dB
Unlock delay time: 8 Seconds
Min illumination: 0.8 LUX at F1.2 - See more at: http://shop.piperaris.com/dzh-121c-color-video-door-station-camera.html?___store=en&___from_store=gr#sthash.WcH3ImIm.dpuf
The video intercom outdoor station offers infrared LED light compensation.
It has a vandal-proof and weather-proof design.
It is made of ABS plastic and a metal case.
