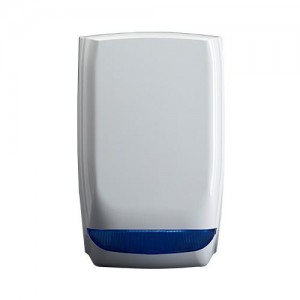

760ES Wireless external siren
|
Trade 2, radio external siren with built-in strobe. The advanced electronics and design allow for alkaline or lithium batteries to be fitted and still provides up to 15 minute siren run time, per activation. Adjustable screw holes enable levelling without re-drilling to make installation simple on any external wall. |
|
Made by:
Scantronic 760ES External Wireless Radio Sounder For The Scantronic i-ON Range
The Scantronic 760ES is a self powered external bellbox complete with strobe unit designed to work with the I-ON range of control units.
Fitted within the enclosure are twin sounders capable of exceeding 100dB(A), a radio transceiver operating on 868MHz, a battery pack and a LED strobe strip. The unit can be mounted on any non-metallic vertical surface. The range of operation from the control unit may vary depending on the site conditions and in particular the material of walls between the two units. In free air the range will easily exceed 100m.
This product is suitable for use in systems designed to comply with EN 50131-1:2006 and PD6662:2004 +A1+A2 at Grade 2 and is tested to prEN 50131-4:2008 at Grade 2.
Features
- 105 dB(A)@1m sound output
- prEN 50131-4 Grade 2 Compliant
- High power LED strobe
- Cover and rear tamper detection
- Selectable cut-off timer
- Anti-jamming detection
- Conformally coated electronics
- Battery change warning
- Built in spirit level installation aid
- Choice of battery options
- Quiet installation mode
- Cover screen printing facility
- ·High impact resistant polycarbonate backplate and cover
Specification
| Sound Output | 105 dBA@1m (tone) |
| Cut-off Timer | Selectable 5 secs, 3 mins, 15 mins |
| Environmental | EN 50130-5:1999 class IV |
| Operating temperature | -25°C to +60°C |
| Humidity | 93% RH |
| Dimensions | 212mm W, 346mm H, 76mm D |
| Weight | 1.2 kg (without batteries) |
| Case material | Polycarbonate |
| Radio Supervision | Programmable at control unit. |
| Radio Section | Operating frequency 868.6625MHz Narrowband. |
| Transmitter range | 100m depending on the installation environment. |
| Battery Packs | 2 x 3V Alkaline or 1 x 7.2V Lithium* |
| Battery Life | Over two years for typical use* |
| Monitoring includes | Battery low voltage (<4.0V), RF Jamming. |
*Lithium batteries are recommended if temperatures are regularly below 0°C.
