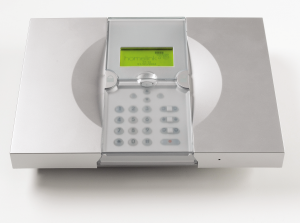

HOMELINK 7510R
|
You want to look after what’s important in life: your family, your home and yourself. With the wire-free Homelink 75 you’re already off to a good start. It offers you some of the most advanced security technology available from one of the world’s leading manufacturers. With nearly 30 years’ experience, Scantronic builds state-of-the-art security systems which incorporate intelligence as standard. Intelligence that makes Homelink 75 more than a security system. Using mobile phone technology, Homelink 75 combines communication and security to bring you a system that not only protects what you care about, but tells you what you need to know – when you need to know it. Whatever you’re doing, whether at home, work or abroad, Homelink 75 gives you complete reassurance that your premises and all its contents are secure. |
|
At a Glance:
General
- Four independent partitions, each of which can be full set or part set
- Provides alarms for intruder, fire, technical, PA and social care
- Built-in siren
- Supplied as a kit with PIR, door contact, telecommand and prox tag.
Inputs:
- 32 fully supervised (to EN50131-3) radio input zones
- 2 FSL wired input zones
Outputs
- 32 programmable radio outputs
- 2 Wired relay outputs
User Interface
- Built in keypad and graphic display
- Voice prompts (can be disabled)
- Multi-function remote operation fobs
- Integral prox reader
- Remote control by telephone (mobile or land line)
- Built-in microphone
- Loud-speaking facility
- Voice memo recording facility
Communications
- Integral digital communicator offering SCANCOM, Fast-Format, SIA l, ll & lll Extended, and Contact ID formats
- Plug on adaptors for Internet Protocol over Ethernet or GPRS
- Plug on adaptors for GSM (mobile phone)
- Integral social alarm function with Tunstall and SCANCOM Fast-Format communications and half-duplex voice communication
- Integral speech dialler with one 12s home message and up to four consecutive messages each 8s long with listening-in and talk back facility
Radio
- Scantronic AE2 dual diversity narrow-band 868 MHz radio receiver
- Integral radio field-strength meter for accurate detector siting
- Supervision and jamming detection on all detectors
- Radio learning of detectors and outputs
Power
- NiMH batteries giving at least 12 hours standby operation
- Mains power from standard outlet (built-in power supply)
Service/Maintenance
- Full upload/download and remote servicing facility 350 event log
- Programmable from a PC or laptop using a built-in USB port
Specifications
Electrical
| Mains Power Supply | 230VAC, 200mA max, +10%/- 15% |
| Standby Time | More than 12 Hours |
Physical
| Dimensions | 285mm W, 206mm H, 45mm D |
| Weight | 1.060kg (without standby battery) |
Technical Specification
Specification
General
Product name 7510r.
Manufacturer Cooper Security Ltd.
Environmental Class II.
Operating temperature Tested -10 to +55°C.
Dimensions 285mm W, 206mm H, 45mm D.
Weight 1.060 kg (without stand-by battery).
Case material ABS.
Zones 2 wired, 32 radio.
Telecommands 16.
Pendants 16.
Outputs 2 wired, 32 radio.
Internal Clock ±10 minutes over one year (depending on the accuracy of the mains supply frequency).
Security
Security Grade Grade 2.
Radio detector differs 16,777,214 (224 -2).
Radio Supervision Programmable.
Access code 4 digits, all four digits may be any number 0 to 9, giving 10,000 differs.
Code blocking Blocked for 90s after four incorrect codes in series.
Radio
Radio Section Operating frequency 868.6625MHz Narrowband.
EN 300 220-3.
EN 300 330-2
Telefication
Transmitter range The range of the transmitters compatible with this control unit depends on the environment in which they are installed. As a guideline, most transmitters will work up 200m range in free space conditions.
Communications
Speech messages can be configured to be up to 44s long (one 12s home message and four consecutive alarms messages of 8s each).
Built in PSTN
This product meets the performance criteria of D2, M2, S1, I0, T2 and A0 as described in EN50136-1-1 subject to network conditions.
ATS rating ATS 2 (prEN50131-1)
PSTN Scancom Fast Format, SIA I, SIA II, SIA 3 and SIA 3 Extended.
Social Alarm Scancom, Scancom Fast Format, and Tunstall.
This product can share a PSTN line with other telephony or fax equipment.
GSM/ISDN/Ethernet/GPRS
Uses plug on module with proprietary interface between control unit and module.
Power Supply
The internal power supply is an off-line switching type. This product complies with the requirements of EN50131-6 Type A power supply at Grade 2 and environmental class 2.
Mains power supply 230VAC, 80mA max, 40mA min, +10%/-15%, 50/60Hz ±5%.
Standby Battery 6 x 1.2V 2000mAh AA rechargeable NiMH.
Standby time: more than 12 hours.
Max recharge time: less than 72 hours.
Monitoring includes Mains fail, battery low voltage, battery failure.
Electromagnetic Compatability
Immunity Conforms to EN50130-4.
Emissions Conforms to EN61000-6-3
Outputs
O/P 1& 2 Voltage free, single pole relay contacts rated 24VDC @ 1A or 120VAC @ 0.5A.
Zone 33 and 34 Fully Supervised Loop.
Fuses
The control unit has a T400mA mains fuse.
Electrical Safety
Conforms to EN60950-1.
Compliance Statements
This product is suitable for use in systems designed to comply with PD 6662: 2004 at grade 2X and environmental class II.
This product complies with the requirements of CLC/TS 50131-3:2003 at grade 2 and environmental class II.
This product complies with the requirements of EN50131-6:1997 at grade 2 and environmental class II.
This equipment is compliant with EN 50136-2-1:1998 and EN 50136-2-2:1998. It allows the alarm transmission system to meet the performance requirements of EN 50131-1:2006 ATS 2 provided that:
a) It is installed in accordance with the installation instructions.
b) The connected PSTN is functioning normally.
c) The ARC is adequately equipped.
