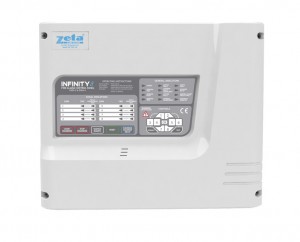

Infinity 1-8 Zone Fire Alarm Panel
Infinity 1-8 Zone Fire Alarm Panel:
|
Infinity 1, 2, 4, 6 or 8 Zone Conventional Fire Alarm Panel The Infinity control panel is housed in the most attractive, modern designed, flame retardent ABS enclosurem utilising a switch mode power supply. It has a fully removable front cover which improves ease of access for cable installations. |
|
- Mains Voltage : 230V AC +10% / -15% @ 50/60 Hz
- System Voltage : 24V DC (Nominal)
- Zone Voltage : 21V DC (Nominal)
- Sounder Alarm Output :
- 1-2 Zone : 2 x 150mA @ 24V DC
- 4-8 Zone: 4 x 150mA @ 24V DC
- Fault Relay : 1 x Volt Free Relay, SELV @ 1A Max
- Zone Capacity : 32 Devices Per Zone
- Remote Sounder Operation : Via N/O Contact Connected to Class Change
- Sounder Activation Delay : 0 to 9 Minutes in 1 Minuite Increments
- Zone End of Line : 1N4002 Diode (Cathode Stripe to Zone +ve)
- Sounder End of Line : 10k Resistor
- Charger Voltage : 27.6W
- Battery Cut Off : Battery Voltage Less Than 20V
- Battery Internal Resistance Limit : 0.9 Ohm
- Enclosure Size : 375 x 316 x 90 (mm)
- Weight : 3kg (Excluding Batteries)
- Maxiumum Battery Space : 2 x 3.4AH, 12
| Model | Zeta Infinity ZT-IN4 |
|---|---|
| Suggested Use | Domestic, Commercial |
| Manufacturer | Zeta |
| CE Approved | Yes |
- Access via password - removes problem of lost keys
- One man test facility
- Diablement facility for zones & sounders
- Space for up to 3Ah batteries
- Sounder delay option
- 4 Sounder circuits on IN4, 6 & 8.
- Sounder circuits 3 and/or 4 can be configured as Aux 24V supplies
- Meets all requirements of latest EN54 part 2 and part
