I-ON 16
|

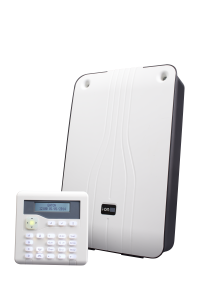

I-on16 wireless home security system The Scantronic i-on16 wireless home security system provides reassurance for people like you, people with lots to protect and busy lives to lead. Whether you’re home or away, i-on16 fits into your life perfectly. i-on16 is a PD6662:2010 and EN50131 Grade 2 solution, featuring 16 radio zones using Eaton’s Security business’ proven combined dual diversity+ system. Ideal for residential or small commercial applications, the i-on16 provides a full professional security solution with a separate end-station and keypad designed to maintain system integrity. Uses a professional grade 7Ah battery. |
p>
|
Features:
- Easy to install, saving you time and money
- Uses Scantronic Class leading radio system
with improved signal strength - PD6662:2010 Grade 2 and EN50131 Grade 2 for a professional installation solution (Grade 2x for version 1 s/w)
- 16 Wireless zones, more than enough to cover
a domestic or small commercial installation - Separate end station and keypad for additional security
- Full Set and three part sets (full set and one part set for version 1 s/w)
- Accepts 2 wired and 2 wireless keypads. (Note that a system requires at least one wired keypad.)
- Four transistorised outputs to drive a wired sounder
or basic home automation - Connects to the new Scantronic 760ES external
radio sounder - 250 event log with date and time stamp
- Option to plug on a speech dialler. Also transmits
Contact ID and Fast Format for connection to
monitoring services - Large ‘easy to read’ and simple to understand display
- Large range of accessories and peripherals
- Built in two button panic alarm on both wired and
wireless keypads, don’t waste time fitting another
box to the wall - New on version 4:
- Four radio outputs.
- SIA communications.
Specification
| BS8243 compliant | Yes |
| Maximum zones | 16 |
| Users | 16 |
| Maximum wired keypad | 2 |
| Total number of log events | 250 |
| Digi-modem | i-SD01 Plug on |
|
PD6662:2004 Compliance |
Grade 2X, Environmental class 2 |
|
Zones |
16 fully programmable |
|
Panel |
i-on 16 End Station with i-on 16 Wired Keypad |
|
Keypads |
Accepts 2 wired and 2 wireless keypads |
|
Proximity reader |
The i-on 16 KeyPads, both wired and wireless, contain a proximity reader as standard |
|
Display |
Blue LED backlit LCD display, full feature plain text, 2 lines, 20 characters |
|
Level Setting |
A = full set, B = Part Set with one button set option |
|
Event Log |
250 event log with date and time stamped |
| Codes |
16 user codes, 4 digit PIN number or proximity tag |
|
Internal sounder |
1 x 16 Ohm internal sounder |
|
Output Types |
13 Programmable output types |
|
Remote Communications |
Speech Dialler, 8 Channel Fast Format and Contact ID |
|
Power Supply |
Conforms to EN50131-6 Type A power supply, rated power output 1.5A of which 850mA is available for Auxiliary power |
|
Battery |
Accepts a 12v standby battery up to 7Ah rechargeable lead acid, gel type |
|
Dimensions |
End Station: 384 x 245 x 94 Keypad: 115 x 156 x 34 |
|
Weight |
End Station: 1.1Kg Keypad: 0.32Kg |
| Temperature range |
Environmental class II -10ºC to 55ºC @75% RH |
