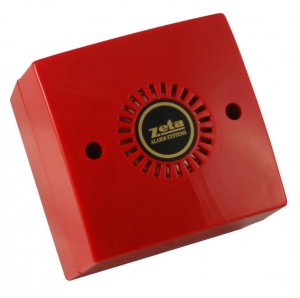

Miditone Electronic Fire Alarm Sounder Red (ZMDD/8R)
|
It is a compact unit that fits a standard European back box, and can be either surface or flush mounted. It has a choice of 8 tone patterns, selectable by an internal dip switch, and a sound output of 95 dBA @ 1m with volume control. This product is designed to meet the requirements of EN54 part 3 and is CE marked. act unit that fits a standard European back box, and can be either surface or flush mounted. |
|
It is a compact unit that fits a standard European back box, and can be either surface or flush mounted.
It has a choice of 8 tone patterns, selectable by an internal dip switch, and a sound output of 95 dBA @ 1m with volume control.
This product is designed to meet the requirements of EN54 part 3 and is CE marked.
- Model: ZMDD/8R
- Lens Colour: Red
- Operating Voltage: 9-30V DC
- Quiescent Current: 0mA
- Sound Output: 95 dBA @ 1m
- Alarm Current @ 24V dc: 35mA MAX
- Operating Temperature: -10°C to +50°C
- Minimum Continuous Temp: 0°C
- Max Humidity: 95% RH Non Condensing
- IP Protection Rating: IP 43
- Size (W x H x D mm): 85 x 85 x 35
- Size with Back Box (W x H x D mm): 85 x 85 x 67
- Weight (with Back Box): 100 g (150g)
