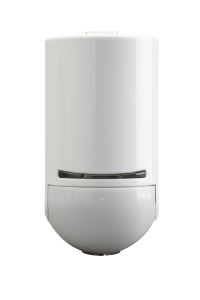

XCELRPT PIR PET Detector
|
XCEL series of detectors use a single housing design across the range. Whether wired or radio, standard or pet tolerant, these PIRs provide a consistent appearance throughout the installation.
The XCEL PIRs have a specially designed spherical lens that generates five layered beams, combined with a dual element sensor to deliver superior detection and catch performance. The PIRs are certified to all EN50131 standards, with the radio technology field proven over many years.
The XCEL PIR series is compatible with all current Eaton security control panels. |
|
Scantronic XCELR 12m by 90° radio PIR
Description
Offers a common appearance throughout a hybrid installation
Xcel series of detectors introduces a housing for wired and wireless standard and pet tolerant PIRs.
Easily available Batteries
XcelR and xcelRPT take two standard AA batteries available from any retailer.
Fewer site visits to change batteries
Battery life increased over the 713/714 from 24 months to 40 months.
Fit Radio PIRs where you want to
50% improved radio range over 713 and 714.
Greater Performance for improved security
Consistency of coverage considerably improved due to the new design of spherical lens, five layers of beams and dual element sensor.
The xcelRPT responds twice as quickly as the 713 whilst maintaining pet tolerance up to 25Kg.
Carry one detector for all installations
Compatible with all current Scantronic and Menvier alarm panels.
Features
- Easily available batteries, the xcelR and xcelRPT take two standard AA batteries available from any retailer.
- Fewer site visits to change batteries, battery life has been increased to 40 months using standard AA batteries.
- Advanced design has led to 30% range improvement; greater performance for improved security.
- Consistency of coverage is considerably improved due to the new design of spherical lens, five layers of beams and dual element sensor. The xcelRPT responds twice as quickly as the previous radio PIRs whilst maintaining pet tolerance up to 25Kg.
- Carry one detector for all installations, the Xcel is compatible with all current Scantronic and Menvier alarm panels with radio capability
Technical Specifications
| Product codes | Radio PIR:XCELR Radio PIR Pet tolerant:XCELRPT |
| EN50131 Grade | 2 |
| Environmental Class | 2 |
| PIR coverage | XCELR: 12m by 90° XCELRPT: 9m by 90° (Pet) |
| Radio range | 100m in free space |
| Batteries | 1.5v AA alkaline x 2 |
| Battery life | 40 months minimum |
| Pet tolerance | Tolerant to pets up to 25kg (XCELRPT) |
|
|
XCELRPT |
|
Detection coverage (m): |
9 |
|
Pet tolerant: |
Yes |
|
Wireless Frequency: |
868.6625 MHz |
|
Batteries: |
2 x AA |
