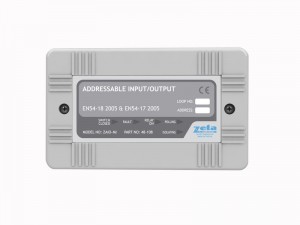

Zeta Addressable Input/Output Module (ZAIO-MI)
|
The ZAIO-MI is both an input and output module in a modern enclosure (2 gang box size) with well protected electronic circuit board to minimize any damages during installation. It is supplied with a back box suitable for surface mount indoor installation. Designed and manufactured to meet the requirements of EN54-18 2005 and EN54-17 2005. |
|
Model :ZAIO-MI
Part Number: 48-108
Operating Voltage:17-28V DC
Quiescent Current @ 24V1.0mA
Switch Input Closed (LED OFF)1.25mA
Relay Operated (LED ON) 2.0mA (Max 2 LEDs on)
Relay Rating SELV @ 1A
Isolating Current 7.3mA
Input End Of Line 20k
Alarm Triggering Resistor 1k
Operating Temperature -10°C to +55°C
Max Humidity 95% RH Non Condensing
IP rating IP21C
Size (mm) 150 x 90 x 45
Weigh 220gr
