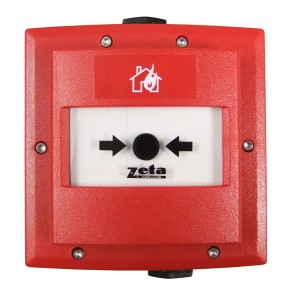

Zeta CP3 Addressable Manual Call Point


Zeta CP3 Addressable Manual Call Point:

The Zeta CP3 adressable call points are unique in that they mimic the feel of breaking glass whilst offering the user the benefits and environmental advantages of a re-settable operating element. The range comprises of 2 versions; standard indoor (ZT-CP3/AD) and an IP67 weatherproof (ZT-CP3/AD/WP) Both CP3 call points are addressed via an 8 way dip switch on the back of the call point.





ZT-3/AD Zeta Addressable Call Point

ZT-CP3/AD is the latest addressable call point from Zeta Alarm Systems. It has a modern design and has been built to EN54 part 11.

It comes supplied with a back box which has plenty of room for fitting the cables and has 2 x 20mm knockouts for glanded cable entry. It is a resettable call point that signals an alarm with a yellow flag entering the window area and a red alarm LED.

The CP3 version does not have the Perspex protective cover.

Optional Extras

The indoor version (ZT-CP3/AD) is compatable with the following options extras;

  • CP3-CV - Perspex Cover for CP3 Series Manual Call Point
  • CP3-FMB - Flush Mount Bezel For Indoor CP3 Series Manual Call Points

Technical Specification

  • Model : ZT-CP3/AD or ZT-CP3/WP
  • Input Voltage : 17-33V DC
  • Element Type : Resettable
  • Quiescent Current : 450μA Maximum
  • Alarm Current : 2.3mA Maximum
  • Operating Temperature : -20 Degrees C to +60 Degrees C
  • Max Humidity : 95%RH Non-Condensing
  • IP Rating :
    • ZT-CP3/AD - IP32
    • ZT-CP3/AD/WP - IP67
  • Size (W x H x D mm) :
    • ZT-CP3/AD - 87 x 87 x 23
    • ZT-CP3/AD/WP - 119 x 119 x 62



  • EN54-11 approved
  • Waterproof IP67 version available
  • Glass Appearance maintains operaator deterrence
  • Positive activation that mimics the feel of breaking glass
  • Visible warning flag confirms activation
  • Simple key to reset operating element (no broken glass)
  • Complete functional test with every activation
