DS-2CD2142FWD-I(W)(S)
DS-2CD2142FWD-I(W)(S):
|

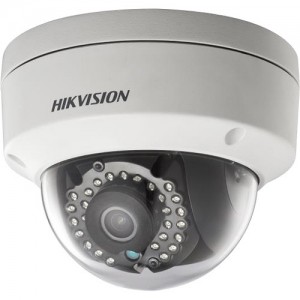

The Hikvision DS-2CD2142FWD-I- is a 4 megapixel fixed vandal proof dome camera with a range of features such as dual streaming, day and night function, digital wide dynamic range, power over ethernet for quick and easy installation, a built-in MicroSD card slot for up to 128GB storage, an IP66 rated housing to protect the camera from outdoor weather conditions and an IK10 rated housing to protect the camera from vandal attempts.
|
|
| Camera | ||
|---|---|---|
| Image Sensor: | 1/3" Progressive Scan CMOS | |
| Min. Illumination: | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR | |
| Shutter time: | 1/3 s to 1/10,000 s | |
| Lens: | 2.8mm, 4mm, 6mm @ F2.0 | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
| Video Compression: |
|
H.264/MJPEG/H.264+ |
| H.264 code profile: | Main Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Dual Stream: | Yes | |
| Image | ||
| Max. Image Resolution: | 2688 × 1520 | |
| Frame Rate: | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) |
|
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| BLC: | Yes, zone configurable | |
| ROI: | Support | |
| Network | ||
| Network Storage: | NAS (Support NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception | |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| Security: | One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access |
|
| System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | |
| Interface | ||
| Audio: | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| Alarm: | 1x alarm I/O *only for –S models | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Wi-Fi Specification (-W) | ||
| Wireless Standards: | IEEE802.11b, 802.11g, 802.11n | |
| Frequency Range: | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth: | 20/40MHz Support | |
| Modulation Mode: | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
|
| Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | |
| Transmit Power: | 11b: 17±1.5dBm @ 11Mbps 11g: 14±1.5dBm @ 54Mbps 11n: 12.5±1.5dBm |
|
| Receive Sensitivity: | 11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical) |
|
| Transmission Rate: | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
|
| Wireless Range: | 50m(depend on environment) | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) | |
| Power Consumption: | Max. 5W | |
| Impact Protection: | IK08(-W model)/IK10(non -W model) | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 30m | |
| Dimensions: | Φ111 × 82 (4.4” × 3.2”) | |
| Weight: | 500g (1.1lbs) | |
| NOTE：: | "-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol. |
|
| SKU | DS-2CD2142FWD-I-2.8mm |
|---|---|
| BRAND | Hikvision |
| CAMERA STYLE | Vandal Dome |
| RESOLUTION | 4MP |
| Lens (mm) | 2.8mm lens |
| IR RANGE (m) | 25-50m |
| FEATURES | Outdoor Use, PoE Powered, Mem Card Slot |
