DS-2CD2342WD-I


DS-2CD2342WD-I:

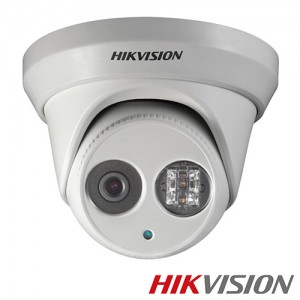

The Hikvision DS-2CD2342WD-I is a 4MP fixed dome camera with a range of features such as dual streaming, day and night function, digital wide dynamic range, power over ethernet for quick and easy installation, an IP66 rated housing to protect the camera from outdoor weather conditions. This camera has 3-axis lens adjustment, allowing you full control over how the camera is mounted and the view adjustment, the third axis of adjustment, Rotate a horizon adjustment, will allow you to bring the view back to level regardless of the pan & tilt adjustments

EXIR Technology (Smart Array IR)
This model also incorporates Hikvision’s EXIR infrared array technology to provide industry-leading illumination in any low- or zero-light environment. Benefiting from an advanced, highly efficient light source that provides up to 30% more illumination efficiency compared to other LEDs and a revolutionary rectangular lens for uniform scene illumination and seamless HD formatting, Hikvision’s EXIR cameras deliver the most advanced levels of night-time surveillance available on the market today.

Part of an Easy IP Solution
The DS-2CD2342WD-I Network camera is part of the Hikvision’s Easy IP solution, boasting Easy Installation and Easy Viewing with the combination of Hikvision Plug & Play NVR and video surveillance software. Installation is a simple 2-step process that’s even easier than Analog – plug the camera into the NVRs PoE port, then connect the monitor and you’re ready to enjoy HD video recording instantly









  • DS-2CD2342WD-I
Camera
Image Sensor:   1/3" Progressive Scan CMOS
Min. Illumination:   0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time:   1/3 s to 1/10,000 s
Lens:   2.8mm, 4mm, 6mm @ F2.0
Lens Mount:   M12
Adjustment Range:   Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Day& Night:   IR cut filter with auto switch
Wide Dynamic Range:   120 dB
Digital noise reduction:   3D DNR
Compression Standard
Video Compression:   H.264/MJPEG/H.264+
H.264 code profile:   Main Profile
Video bit rate:   32Kbps~16Mbps
Dual Stream:   Yes
Max. Image Resolution:   2688 × 1520
Frame Rate:   50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Image Settings:   Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC:   Yes, zone configurable
ROI:   Support
Network
Network Storage:   NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger:   Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols:   TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security:   Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
System Compatibility:   ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface:   1 RJ45 10M / 100M Ethernet interface

General
Operating Conditions:   -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:   12 VDC ± 10%, PoE (802.3af)
Power Consumption:   Max. 5.5W (Max. 7.5W with ICR on)
Weather Proof:   IP66
IR Range:   Up to 30m
Dimensions:   Φ127×97.5 (5.0” × 3.8”)
Weight:   670g (1.5 lbs)
SKU DS-2CD2342WD-I-2.8mm
BRAND Hikvision
CAMERA STYLE Turret Dome
RESOLUTION 4MP
Lens (mm) 2.8mm lens
IR RANGE (m) 25-50m
FEATURES Outdoor Use, EXIR, PoE Powered
