DS-2CE16D5T-IR-3.6MM


DS-2CE16D5T-IR-3.6MM:

Turbo HD Explained
Based on Analogue Technology Hikvision HD TVI (Transport Video Interface) enables reliable long distance analogue HD transmission over coaxial cable (RG59), without the need to upgrade to IP or even needing to replace your existing cabling. Analog Turbo HD is also backward compatible with existing standard analogue CCTV.

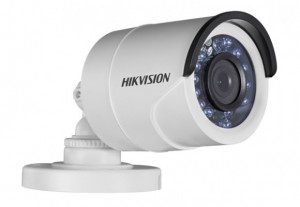

This is Hikvision Turbo HD Analogue (TVI technology) camera offering realtime HD resolution of 1080P in a smart compact design. Retaining the ease of use of analogue cameras whilst offering 1080P HD video output, the cameras does not suffer from latency that is sometimes seen in IP cameras and can be used up to distances in excess of 300m unlike HD-SDI which has a 100m limit. This camera has a fixed lens and comes in a discreet mini bullet with IP66 protection and offers IR range of up to 20m. The camera has dual BNC outputs to enable setup through a test monitor or to install the camera on an existing analogue system if required.
You can use any standard Analogue DVR with BNC connectors with this Camera. For 1080P CCTV wiith this camera we recommend you use Hikvision TURBO HD DVR.







  • DS-2CE16D5T-IR
Camera
Image Sensor:   2MP CMOS Image Sensor
Signal System:   PAL/NTSC
Effective Pixels:   1944(H)×1092(V)
Min. Illumination:   0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time:   1/25(1/30) s to 1/50,000 s
Lens:   3.6mm (6mm optional)
Angle of View: 82.6°(3.6mm), 54.4°(6mm)
Lens Mount:   M12
Adjustment Range:   Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Day& Night:   IR cut filter with auto switch
Wide Dynamic Range:   120dB
Video Frame Rate:   1080p@25fps/1080p@30fps
HD Video Output:   1 Analog HD output
Synchronization:   Internal Synchronization
CVBS Output:   1Vp-p Composite Output(75Ω/BNC)
S/N Ratio:   More than 62 dB
BLC:   Support
Up the Coax:   Support
Menu
Camera ID:   On/Off (15 letters, adjusted position)
D/N Mode:   Color/ BW/ EXT
Auto White Balance:   ATW/ AWC-SET/ Indoor/ Outdoor/ Manual
Private Mask:   On/Off, maximum 8 zones
Motion Detection:   On/Off, maximum 4 zones
BLC:   BLC/HLC/Off
Anti-flicker:   On/ Off
Language:   English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic
Function:   Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM
Scene:   Indoor, Outdoor, Indoor1, LOW-LIGHT

General
Operating Conditions:   -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 90% or less (non-condensing)
Power Supply:   12 VDC±15%
Power Consumption:   max. 4W
Weather Proof:   IP66
IR Range:   Up to 20m
Dimension:   Φ70×149.5 mm (Φ2.76” ×5.89”)
Weight:   360 g (0.79 lb)
