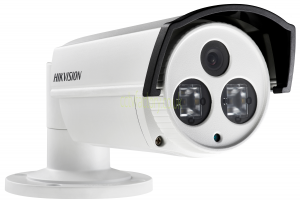

DS-2CE16D5T-IT5


DS-2CE16D5T-IT5:

Turbo HD Explained
Hikvision DS-2CE56D5T-IRM camera is a HD Analogue (TVI) camera offering realtime HD resolution of 1080P in a smart compact design. Retaining the ease of use of analogue cameras whilst offering 1080P HD video output, the cameras does not suffer from latency that is sometimes seen in IP cameras and can be used up to distances in excess of 300m unlike HD-SDI which has a 100m limit. The camera has a 3.6mm fixed lens and comes in an attractive eyeball design with IP66 protection and offers IR range of up to 20m. The camera has dual BNC outputs to enable setup through a test monitor or to install the camera on an existing analogue system if required.
For 1080P CCTV wiith this camera use Hikvision TURBO HD range of DVR's.

EXIR Technology
This model also incorporates Hikvision’s EXIR infrared array technology to provide industry-leading illumination in any low- or zero-light environment. Benefiting from an advanced, highly efficient light source that provides up to 30% more illumination efficiency compared to other LEDs and a revolutionary rectangular lens for uniform scene illumination and seamless HD formatting, Hikvision’s EXIR cameras deliver the most advanced levels of night-time surveillance available on the market today.







  • DS-2CE16D5T-IT5
Camera
Image Sensor:   2MP CMOS Image Sensor
Signal System:   PAL/NTSC
Effective Pixels:   1944(H)×1092(V)
Min. Illumination:   0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time:   1/25(1/30) s to 1/50,000 s
Lens:   3.6mm (6mm, 8mm, 12mm, 16mm optional)
Angle of View: 82.6°(3.6mm), 54.4°(6mm), 38°(8mm), 24.4°(12mm), 18.9°(16mm)
Lens Mount:   M12
Adjustment Range:   Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Day& Night:   IR cut filter with auto switch
Wide Dynamic Range:   120dB
Video Frame Rate:   1080p@25fps/1080p@30fps
HD Video Output:   1 Analog HD output
Synchronization:   Internal Synchronization
CVBS Output:   1Vp-p Composite Output(75Ω/BNC)
S/N Ratio:   More than 62 dB
Up the Coax:   Support
Menu
Camera ID:   On/off (15 characters, position programmable)
D/N Mode:   Color/ BW/ EXT
Auto White Balance:   ATW/ AWC-SET/ Indoor/ Outdoor/ Manual
Private Mask:   On/Off, maximum 8 zones
Motion Detection:   On/Off, maximum 4 zones
BLC:   On/Off
AGC:   Support
Anti-flicker:   On/ Off
Language:   English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic
Function:   Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM

General
Operating Conditions:   -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 90% or less (non-condensing)
Power Supply:   12 VDC±15%
Power Consumption:   Max. 5W
Weather Proof:   IP66
IR Range:   Up to 80m
Dimension:   105×104.8×263.1mm(4.13” ×4.13” ×10.36”)
Weight:   800 g (1.76 lb)
SKU DS-2CE16D5T-IT5-3.6mm
BRAND Hikvision
CAMERA STYLE Bullet Cameras
RESOLUTION 2MP (1080P)
Lens (mm) 3.6mm lens
IR RANGE (m) 0-25m, 25-50m, 50-100m
FEATURES Turbo HD, Outdoor Use, EXIR
