DS-2CE56D1T-IT3
|

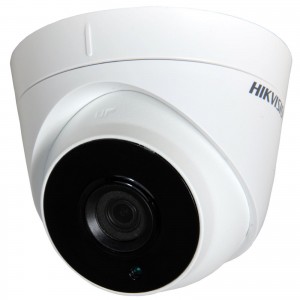

Turbo HD Explained This Hikvision DDS-2CE56D1T-IT3 camera is a HD Analogue (TVI) camera offering realtime HD resolution of 1080P in a smart compact design. Retaining the ease of use of analogue cameras whilst offering 1080P HD video output, the cameras does not suffer from latency that is sometimes seen in IP cameras and can be used up to distances in excess of 300m unlike HD-SDI which has a 100m limit. The camera has a Varifocal 2.8-12mm lens and comes in an attractive eyeball design with IP66 protection and offers IR range of up to 50m with EXIR technology. The camera has a single BNC output to connect it to a Hikvision TURBO HD DVR |
|
| Camera | ||
|---|---|---|
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1930(H) × 1088(V) | |
| Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 3.6mm, 6mm optional, Angle of View: 91.3°(3.6mm), 59.9°(6mm) | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| Up the Coax: | Support | |
| Menu | ||
| Camera ID: | On/Off (0-255) | |
| D/N Mode: | Color/ BW/ Auto/ EXT | |
| Auto White Balance: | Auto/User/Push/8000K/6000K/4200K/3000K | |
| Private Mask: | On/Off, maximum 8 zones | |
| Motion Detection: | On/Off, maximum 4 zones | |
| BLC: | On/Off | |
| AGC: | Support | |
| Anti-flicker: | On/ Off | |
| Language: | English/Chinese | |
| Function: | Digital noise reduction, Mirror | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | Max. 4W | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 20m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | Φ110 × 93.2 mm(Φ4.33” × 3.67”) | |
| Weight: | 350 g | |
| SKU | DS-2CE56D1T-IT3 |
|---|---|
| BRAND | Hikvision |
| CAMERA STYLE | Turret Dome |
| RESOLUTION | 2MP (1080P) |
| Lens (mm) | 3.6mm lens |
| IR RANGE (m) | 25-50m |
| FEATURES | Turbo HD, Outdoor Use, EXIR |
