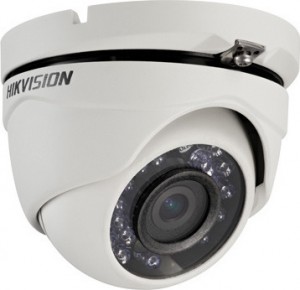

DS-2CE56D5T-IRM
DS-2CE56D5T-IRM:
|
Turbo HD Explained |
|
| Camera | ||
|---|---|---|
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1944(H)×1092(V) | |
| Min. Illumination: | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 3.6mm (2.8mm, 6mm optional) Angle of View: 82.6°(3.6mm), 103.5°(2.8mm), 54.4°(6mm) |
|
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120dB | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| CVBS Output: | 1Vp-p Composite Output(75Ω/BNC) | |
| S/N Ratio: | More than 62 dB | |
| Up the Coax: | Support | |
| Menu | ||
| Camera ID: | On/off (15 characters, position programmable) | |
| D/N Mode: | Color/ BW/ EXT | |
| Auto White Balance: | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual | |
| Private Mask: | On/Off, maximum 8 zones | |
| Motion Detection: | On/Off, maximum 4 zones | |
| BLC: | On/Off | |
| AGC: | Support | |
| Anti-flicker: | On/ Off | |
| Language: | English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic | |
| Function: | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | Max. 4W | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 20m | |
| Dimension: | 89.6 × 59.1 mm (3.53” × 2.33”) | |
| Weight: | 340 g | |
| SKU | DS-2CE56D5T-IRM-2.8mm |
|---|---|
| BRAND | Hikvision |
| CAMERA STYLE | Turret Dome |
| RESOLUTION | 2MP (1080P) |
| Lens (mm) | 2.8mm lens |
| IR RANGE (m) | 0-25m |
| FEATURES | Turbo HD, Outdoor Use |
