DS-2CE56D5T-VFIT3

DS-2CE56D5T-VFIT3:

Turbo HD Explained

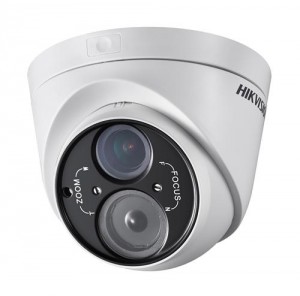

Hikvision DS-2CE56D5T-VFIT3 camera is a HD Analogue (TVI) camera offering realtime HD resolution of 1080P in a smart compact design. Retaining the ease of use of analogue cameras whilst offering 1080P HD video output, the cameras does not suffer from latency that is sometimes seen in IP cameras and can be used up to distances in excess of 300m unlike HD-SDI which has a 100m limit. The camera has a Varifocal 2.8-12mm lens and comes in an attractive eyeball design with IP66 protection and offers IR range of up to 50m with EXIR technology. The camera has dual BNC outputs to enable setup through a test monitor or to install the camera on an existing analogue system if required.
For 1080P CCTV wiith this camera use Hikvision TURBO HD range of DVR's

DS-2CE56D5T-VFIT3

Camera
Image Sensor:		2MP CMOS Image Sensor
Signal System:		PAL/NTSC
Effective Pixels:		1944(H)×1092(V)
Min. Illumination:		0.01 Lux @ (F1.2,AGC ON),0 Lux with IR 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		2.8-12mm @ F1.4 Angle of view: 103° - 32.1°
Lens Mount:		φ14
Adjustment Range:		Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day& Night:		IR cut filter with auto switch
Wide Dynamic Range:		120dB
Video Frame Rate:		1080p@25fps/1080p@30fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization
CVBS Output:		1Vp-p Composite Output(75Ω/BNC)
S/N Ratio:		More than 62 dB
Up the Coax:		Support
Menu
Camera ID:		On/off (15 characters, position programmable)
D/N Mode:		Color/ BW/ EXT
Auto White Balance:		ATW/ AWC-SET/ Indoor/ Outdoor/ Manual
Private Mask:		On/Off, maximum 8 zones
Motion Detection:		On/Off, maximum 4 zones
BLC:		On/Off
AGC:		Support
Anti-flicker:		On/ Off
Language:		English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic
Function:		Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM
Scene:		Indoor, Outdoor, Indoor1, LOW-LIGHT

General
Operating Conditions:		-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±15%
Power Consumption:		Max. 7W
Weather Proof:		IP66
IR Range:		Up to 50m
Dimension:		φ130.54 × 93.24 mm (φ5.14” × 3. 67”)
Weight:		670 g

SKU	DS-2CE56D5T-VFIT3
BRAND	Hikvision
CAMERA STYLE	Turret Dome
RESOLUTION	2MP (1080P)
Lens (mm)	Vari~Focal (VF)
IR RANGE (m)	25-50m
FEATURES	Turbo HD, Outdoor Use, EXIR
