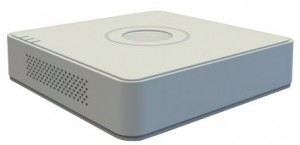

DS-7104/7108/7116HVI-SL
|
Quality budget 4-channel DVR with support recording cameras in the D1 resolution and WD1 (960H) on all channels in real time.The recorder has a place in a HDD of up to 4 TB, which will be enough for a large number of files, and even more so when the recording mode of motion detection in the camera frame.All registrars are Hikvision network, and enable you to connect and view any analog camera to the Internet via the free client software or a web browser.• H.264 & dual- stream video compression
|
|
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.264 | |
| PAL/NTSC Adaptive: | Support | |
| Video Input: | 16-ch | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) | |
| Video/Audio Output | ||
| VGA Output: | 1-ch, resolution: 1920×1080P/60Hz,1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz |
|
| CVBS Output: | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
| Recording resolution: | WD1/ 4CIF / 2CIF / CIF / QCIF | |
| Frame Rate: | WD1: 8fps 4CIF/2CIF: 10fps CIF/QCIF: 25/30fps |
|
| Video Bit Rate: | 32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps) | |
| Stream Type: | Video/Video&Audio | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Hard Disk Driver | ||
| Interface Type: | 1 SATA Interface | |
| Capacity: | Up to 4TB capacity for each disk | |
| External Interface | ||
| Network Interface: | 1 RJ45 10M/100M adaptive Ethernet Interface | |
| USB Interface: | 2 USB 2.0 Interfaces | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 10 W | |
| Working Temperature: | -10 °C ~ +55 °C | |
| Working Humidity: | 10% ~ 90% | |
| Chassis: | Mini 1U chassis | |
| Dimensions: | 285 × 210 × 45 mm (W × D × H) | |
| Weight: | ≤ 1.5 kg (without hard disk or DVD-R/W) | |
