DS-9004/9008/9016HFI-ST


DS-9004/9008/9016HFI-ST:

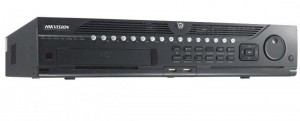

The Hikvision DS-8000HFI-ST series HDVR (Hybrid Digital Video Recorder) is a new generation recorder which can both connect analog and network cameras. Connect 16 analogue video channels and up to 32 IP video channels with an incoming bandwidth of 200Mbps when all analogue cameras are disabled. Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system.



Embedded Hybrid DVR

• H.264 video compression
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• 8/16-ch synchronous playback
• HDD quota and group management
• Dual Gigabit network interfaces
• RAID 0,1,5,10 supported

  • DS-9016HFI-ST
  • DS-9008HFI-ST
  • DS-9004HFI-ST
Video/Audio Input
Video Compression:   H.264
Analog Video Input:   4-ch, BNC(1.0Vp-p, 75Ω), PAL/NTSC adaptive
IP Video Input:   Up to 8-ch
Composite Video Input:   up to 8-ch (Analog video + IP video)
Audio Compression:   OggVorbis
Audio Input:   4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 KΩ) (Using audio input)
Video/Audio Output
CVBS Output:   2-ch (1 Main output + 1 Spot output) BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI Output:   1920 × 1080 / 60 Hz (1080P), 1920 × 1080 / 50 Hz (1080P), 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
VGA Output:   1920 × 1080 / 60 Hz (1080P), 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 ×
768 / 60 Hz
Playback Resolution:   5MP/3MP/1080p/UXGA/720P/WD1/4CIF/VGA/DCIF/2CIF/CIF/QCIF
Recording Resolution:   Main stream: 4CIF / 2CIF / CIF / QCIF
Sub-stream: CIF / QCIF
Frame Rate:   Main stream: 25 fps (P) / 30 fps (N)
Sub-stream: 25 fps (P) / 30 fps (N)
Video Bit Rate:   32 Kbps ~ 8 Mbps
Audio Output:   2-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Bit Rate:   16kbps
Synchronous Playback:   8-ch
Dual Stream:   Support
Hard Disk Driver
Interface Type:   8 SATA interfaces for 4 HDDs + 1 DVD-R/W (default), or 8HDDs; 1 eSATA interface
Capacity:   Up to 4 TB capacity for each disk
Disk Array
Array Type:   RAID 0, RAID 1, RAID 5, RAID 10
Number of Array:   8
Number of Virtual Dsk:   8
External Interface
Network Interface:   2; 10M/100M/1000M self-adaptive Ethernet interface
Serial Interface:   RS-232, RS-485, Keyboard
USB Interface:   2, USB2.0
Alarm in/out:   4 / 2
General
Power Supply:   100~240VAC, 6.3A, 50~60Hz
Consumption:   Max. 35W
Working Temperature:   -10°C~+55°C(14°F~131°F)
Working Humidity:   10%~90%
Chassis:   19-inch rack-mounted 2U chassis
Dimensions:   445 × 470 × 90 mm
Weight(Without HDD):   Approx. 8 kg / 17.6 lb (without hard disk or DVD-R/W)
