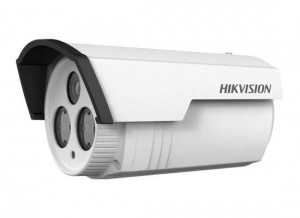

HIKVISION DS-2CE15C2P-VFIR3
HIKVISION DS-2CE15C2P-VFIR3:
|
This series of camera adopts new generation sensor with high sensitivity and advanced circuit design technology. It features high resolution, low image distortion and low noise features, etc., which makes it suitable for surveillance system and image processing system.
|
|
| Camera | ||
|---|---|---|
| Image Sensor: | 1/3'' PICADIS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1280 (H) × 960 (V) | |
| Min. Illumination: | 0.1Lux @ (F1.2,AGC ON),0 Lux with IR 0.14Lux @ (F1.4,AGC ON),0 Lux with IR |
|
| Shutter Time: | 1/25(1/30) s to 1/25,000(1/30,000) s | |
| Lens: | 2.8-12 mm @ F1.4 Angle of view: 80° - 27.2° |
|
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Horizontal Resolution: | 720TVL | |
| Synchronization: | Internal Synchronization | |
| Video Output: | 1Vp-p Composite Output (75Ω/BNC) | |
| S/N Ratio: | More than 62 dB | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 V DC±10% | |
| Power Consumption: | Max. 4 W(Max. 5 W with IR cut filter on) | |
| Weather Proof: | IP66 | |
| IR Range: | Approx 30 to 40 meters | |
| Dimension: | 105 × 86.9 × 267.2mm(φ 4.13” x 3.42” x 10.52”) | |
| Weight: | 1350g (2.97 lbs) | |
