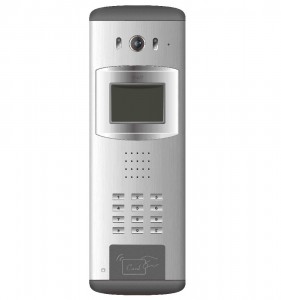

HZM-801CY


HZM-801CY:

The WRT-IP is an intelligent video intercom & home automatic system which is based on TCP/IP technology. It’s powerful in intercoms and convenient in installation. Unlimited number of indoor monitors and outdoor stations make the system flexible and expandable. All video, audio and data are simply transmitted by just a CAT-5 cable; therefore, there is no need to handle with those complicated wiring and numerous relays, decoders, adapters, etc.The indoor stations can restore pictures. 64 pictures of visitors, 64 personal and public information, 64 alarm information can be stored. The cameras of indoor stations can automatically catches the photos of visitors after 5 seconds of the button pressing and send the photos to the management center.IP system supports alarm short messages .When emergencies occurred in the owners house, the system can send massages to the mobile phones of the house owners. The indoor stations support elevators summon function, making it more convenient for the users when they go out.









  1. Luxury design, Maximum capacity is unlimited
  2. Touch Response keyboard, Color Video
  3. LCD follow-up operation menu
  4. Digital Audio Encoding
  5. Can call/talk with Guard Center and the Guard Center can remotely unlock
  6. 6.Unlock with password and cards (IC card: Type A, I; ID card: Type A, E),disarm by cards
  1. Language select
  2. Burglar alarm(optional)
  3. CCD with night infrared compensation

     10. TCP/IP Agreement, network, remote system upgrade

  • Display: LCD
  • Working temperature:-30 - 55
  • Working humidity: 45% - 95%
  • Working current: ≤400mA
  • Quiescent current: ≤250mA
  • Input Voltage: +DC15V
  • Protection grade: IP33
  • Conversation time: About 120s
  • Camera:1/3”SONY SHAD CCD
  • Resolution: 420TV Line
  • IC/ID card reading distance: ≤30mm
  • Dimension:117x335x80mm
  • Bottom case dimension: 92x335x65mm
  • Network transmission protocol: TCP/IP
  • Cable requirement:1*CAT5 8-core cable,1*RVV3 X 1.0mm as power cable.
  • Network Port: RJ45
  • Transmission range: router or PBX less than 100m, FOT more than 100m
